特徴

仕様

Type: Spray Drying Equipment

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition: New

Voltage: 380V~3N/50Hz/60Hz Customizable

Power: Depends on model parameter

Dimension(L*W*H): Depends on model parameter

Key Selling Points: Energy saving

Warranty: 1 Year

Weight (KG): Depends on model parameter

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops

Showroom Location: None

Marketing Type: New Product 2021

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Engine, Other

Evaporation Capacity(kg/h): Other

Heating Method: Electric/ Steam Heating

Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other, Stainless Steel / carbon steel customized

After-sales Service Provided: Service Machinery Overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service

Product name: Spray Dryer

Raw material: Liquid Form Material

Feature: Low Energy High Efficiency

Item: Industrial Spray Dryer

Usage: Powder making

Function: Continuous

Temperature range: 50-230C

water evaporation: 200kg/h

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

証明: ISO CE

基本情報

証明: ISO CE

お支払配送条件

Packaging Details: Standard safe packing

Supply Ability: 40 Set/Sets per Month Spray Dryer

製品の説明

Product Overview

Professional Plasma Spray Dryer Swine Blood Meal Spray Drying Machine

Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most

suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.

FEATURES AT A GLANCE

Right elevation

Front elevation

Left elevation

Working Principle

After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator.

The waste gas will be discharged from exhaust fan.

Product Parameters

Model	WTPG-5	WTPG-25	WTPG-50	WTPG-100	WTPG-150
Inlet temperature	140-350 ℃ automatic control
Outlet temperature	~80-90℃
Max water evaporation capacity	5 kg/h	25kg/h	50kg/h	100kg/h	150kg/h
Centrifugal spraying nozzle transmission mode	Compressed air transmission	Mechanical transmission
Rotation speed	25000 r.p.m	18000 r.p.m	18000 r.p.m	18000 r.p.m	15000 r.p.m
Spraying desc diameter	50 mm	100 mm	120 mm	140 mm	150 mm
Heat supply	Electric	Electric+steam	Electric+steam, fuel oil and gas
Max electric heating power	9 Kw	36 Kw	63 Kw	81 Kw	99 Kw
Overall dimensions (LWH) m	1.80.932.2	32.74.26	3.73.25.1	4.64.26	5.54.57
Dried powder collecting	≥95%

APPLICATION SCOPE

Food industry: fat milk powder, collagen, cocoa milk powder, emulsion, pig blood powder, egg white (yellow) and so on.

Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, hydrolysate, etc.

Sugar: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.

Plastic resin: AB, ABS emulsion, urea formaldehyde resin, phenolic resin, rubber (urea) formaldehyde resin, polyethylene, polyfluoroethylene and so on.

Chemical industry: sodium fluoride (potassium), basic dye pigment, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black, etc.

Ceramics: alumina, ceramic tile materials, magnesia, talcum powder, etc.

Product More Pictures

PACKING AND SHIPPING

Company Profile

LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.

Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.

Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.

We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :

1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and
accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,
lifetime maintenance service is provided and at buyer’s cost.

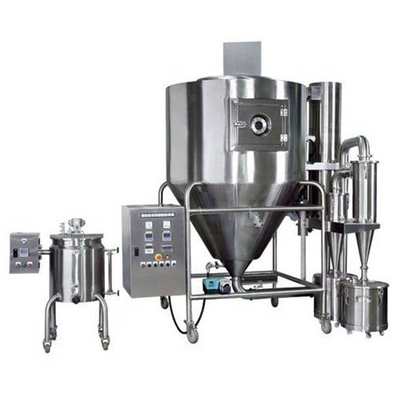

Industrial low energy high efficiency food product coffee extract atomizer spray dryer/milk spray drying machine
